RE: Air fuel control derate?

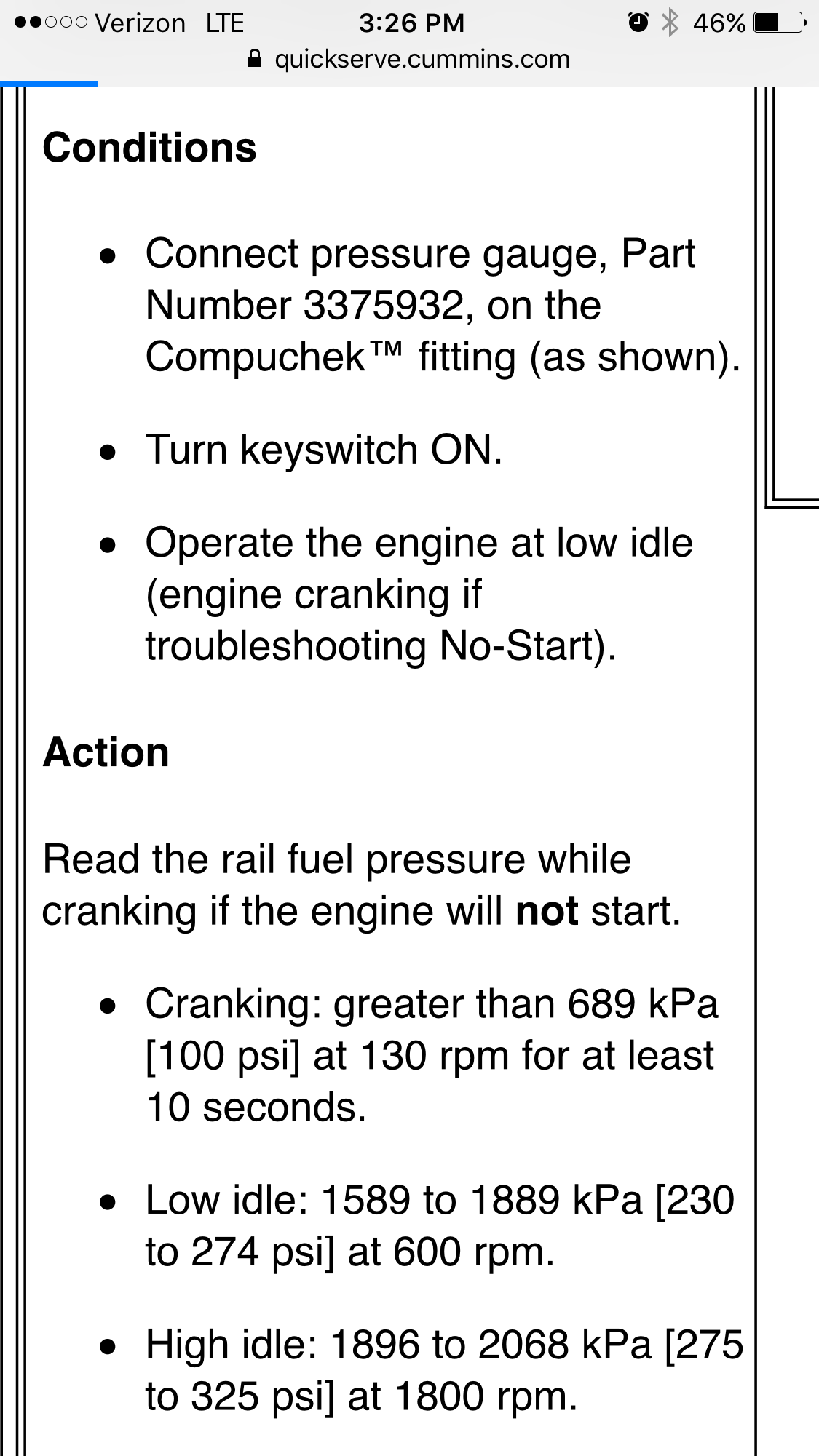

As per Quickserve:
100psi at 130rpm while cranking for 10 seconds (no start condition check)
230-270psi at low idle 600rpm
275-325psi at high idle 1800rpm

Insite will tell you the pressure of the fuel rail while connected. Remember, the proper way to test is a mechanical guage connected to the compucheck fitting, but insite is a valuable tool if you don't have a mechanical gauge available.

./uploads/201706/post_2077_1496604636_33ae1d928b0f4268d12c8ebdf92a8a9e.png

Post #20 in this tread has my results, which IIRC are the same as mine were during my road testing.
http://rawze.com/forums/showthread.php?tid=1365&page=4
