Tripac APU "Pre Evolution"

12-24-2018, (Subject: Tripac APU "Pre Evolution" )

Post: #26

Nilao

Offline

HMR-Contrinbuting V.I.P. (1316 Likes)

Posts: 1,527
Joined: Sep 2015

Thanks: 62
Given 1316 thank(s) in 746 post(s)

RE: Tripac APU "Pre Evolution"

The 50 amp fused goes to the board, the unfused one goes to the starter stud that is connected to the battery through a 200 amp fuse, the small wire has a diode in it and is the voltage sense wire for the alternator.

I would say if you are not getting voltage to pull the coil then the board is bad. Mine was stuck in the energized position and fried any coils i replaced. The hold side worked fine though...

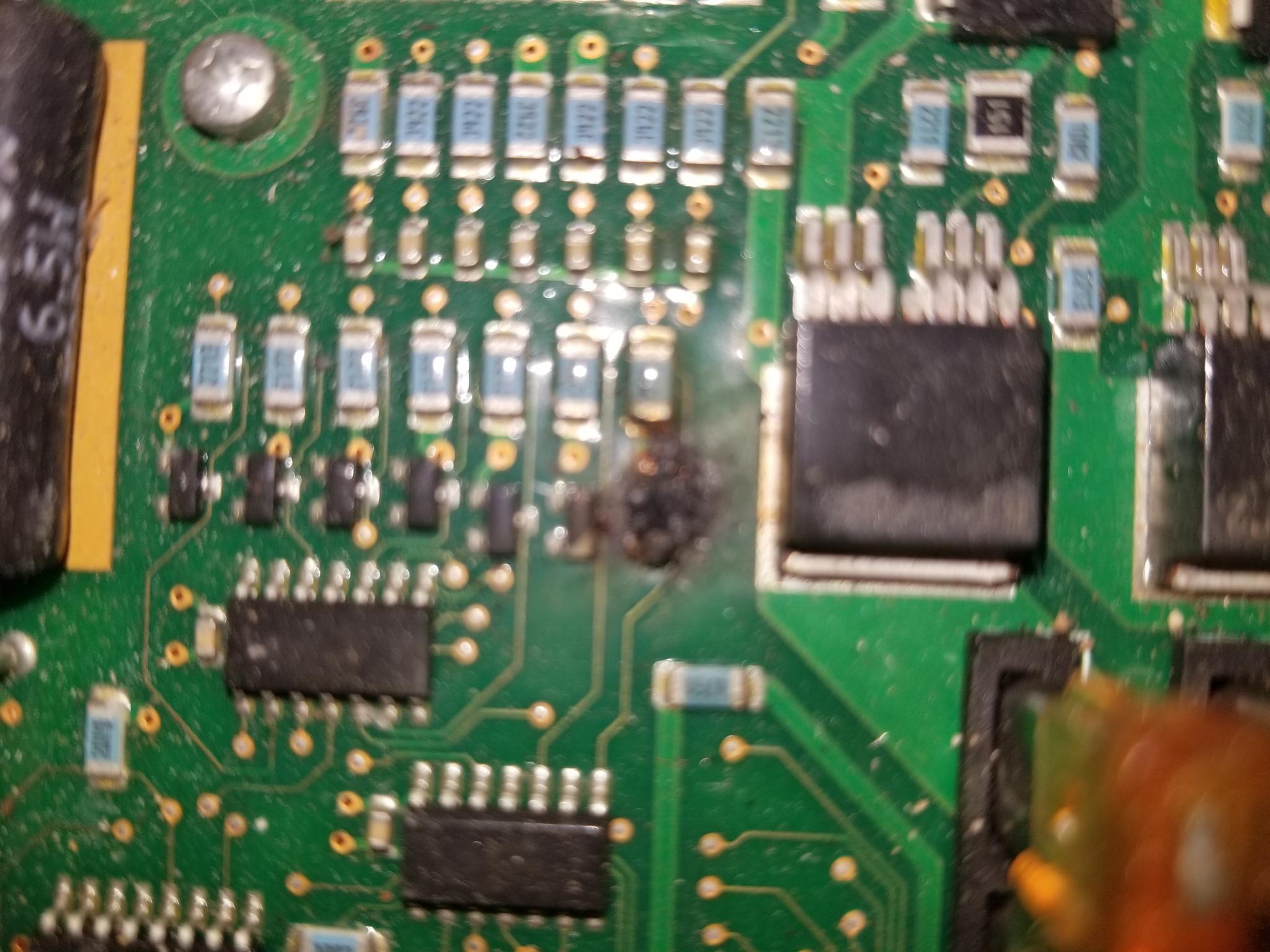

Heres a picture of my failed board component.
