Diesel particulate trap 1 psi codes
07-01-2016, (Subject: Diesel particulate trap 1 psi codes )
Post: #7
RE: Diesel particulate trap 1 psi codes
Do you guys see anything alarming with the aftertreatment history?

1274 and 1271 is pretty high temps, what normally causes this issue?

Im going to do a forced regen and I will update with screen shots of regen

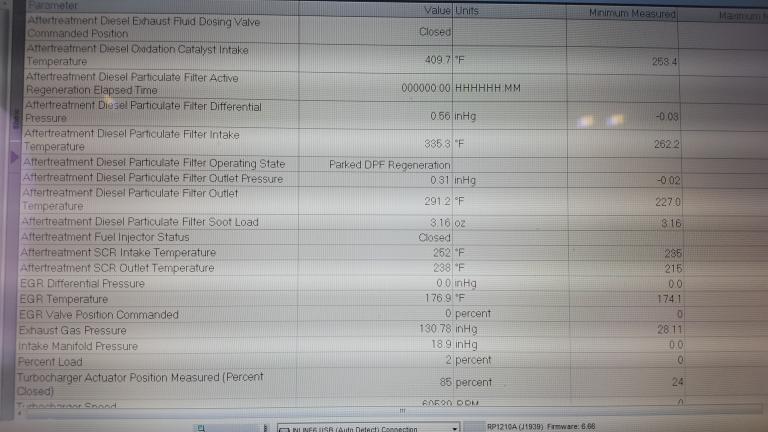

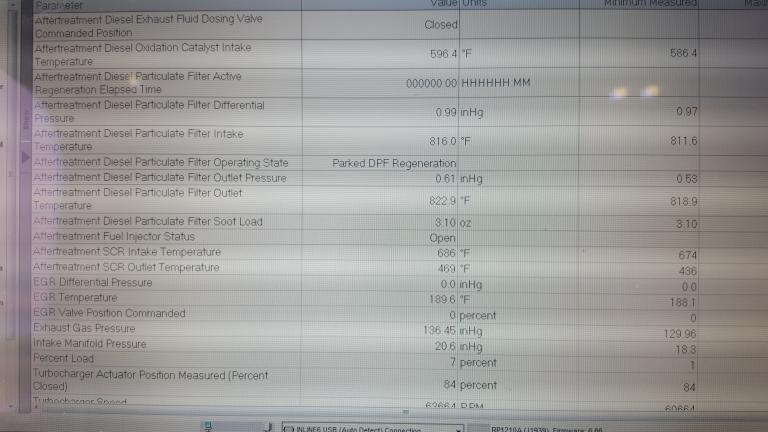

First picture is start of Regen, then about 5-8 mins later another picture of what changed in that time frame
./uploads/201607/post_1653_1467380994_420709711f25f9ff7596031a26c5c995.jpg
./uploads/201607/post_1653_1467380994_420709711f25f9ff7596031a26c5c995.jpg
./uploads/201607/post_1653_1467381084_3cea21d8c1fd90bb38375eea83561b1d.jpg

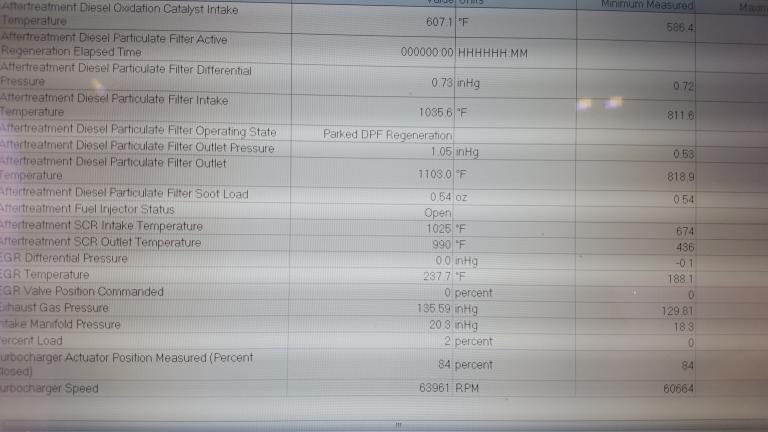

Next pic is about 30 mins in./uploads/201607/post_1653_1467382374_b04fb3bdc099db013d169d4f941286e3.jpg

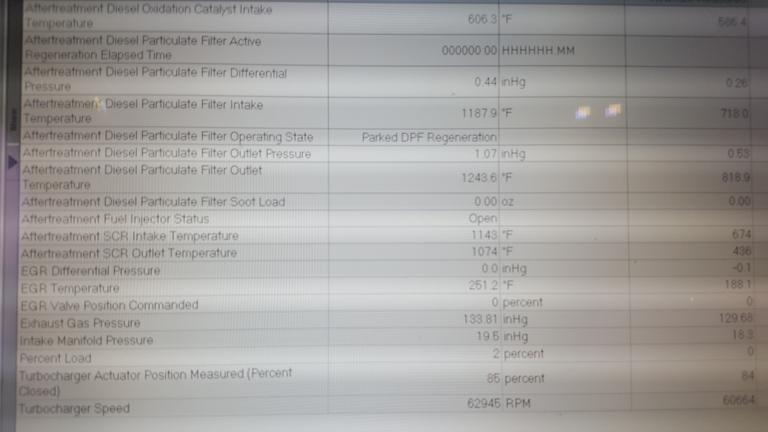

1 hour and 10 mins./uploads/201607/post_1653_1467384799_fa137b365b40d31cdac14a16f6959267.jpg


Attached File(s)Image(s)
./uploads/201607/post_1653_1467381254_24190cdf4a52bfe365e2e70865682206.jpg
