06 CM870 450 ISX egr tuneup

09-25-2019, (Subject: 06 CM870 450 ISX egr tuneup )

Post: #15

DDlighttruck Offline

Offline

Established (119 Likes)

Posts: 325
Joined: Jul 2017

Thanks: 173
Given 119 thank(s) in 80 post(s)

RE: 06 CM870 450 ISX egr tuneup

./uploads/201909/post_2980_1569463251_40eaea874a72e198469710be36532d6b.jpeg

./uploads/201909/post_2980_1569463271_2bb4afbcd73ca650742b0cac93585fc5.jpeg

I have a dumb question. Bear with me I’m on the road and am not gonna start taking things apart until I’m at the shop again.

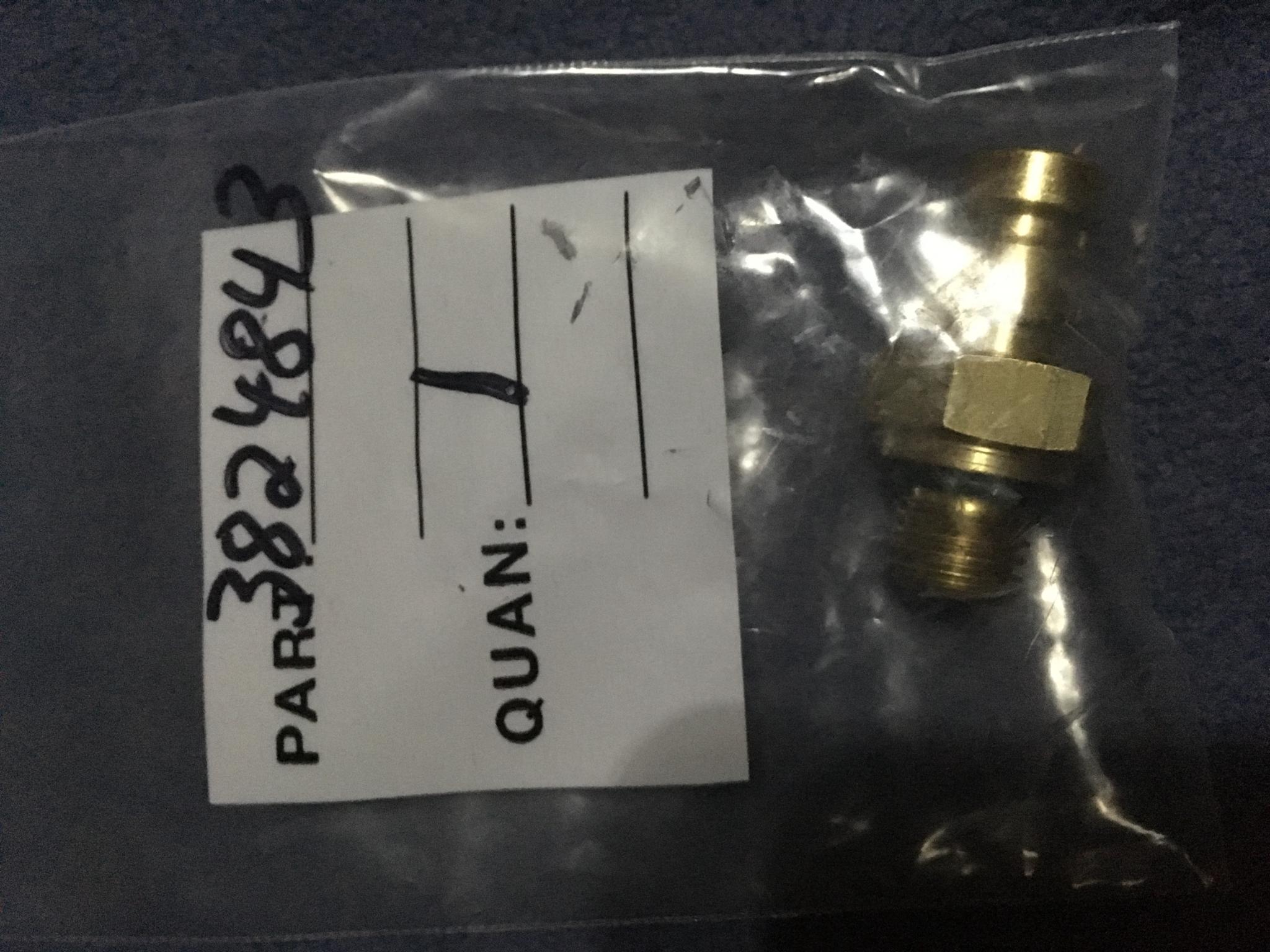

I was able to grab the fitting from Cummins in the USA, but it’s a male/male fitting. I picked up a female compucheck fitting while I was there, too.

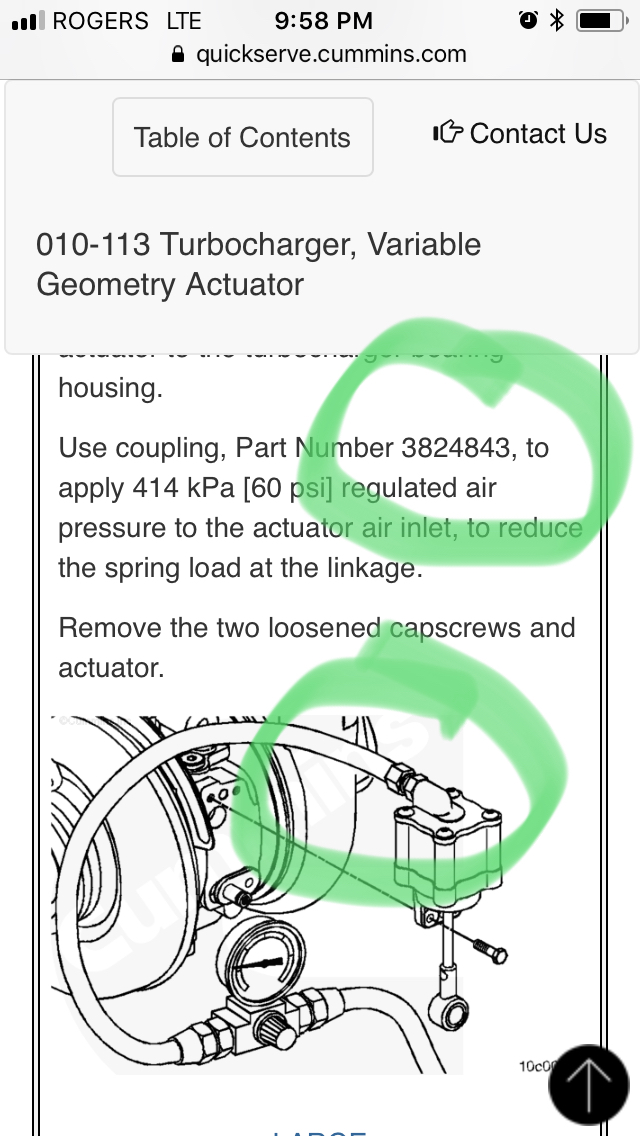

So...do I unscrew the fitting from the actuator...install this fitting to perform the stroke test? I went back and reread the instructions from Cummins on how to perform the test, but it’s not clear

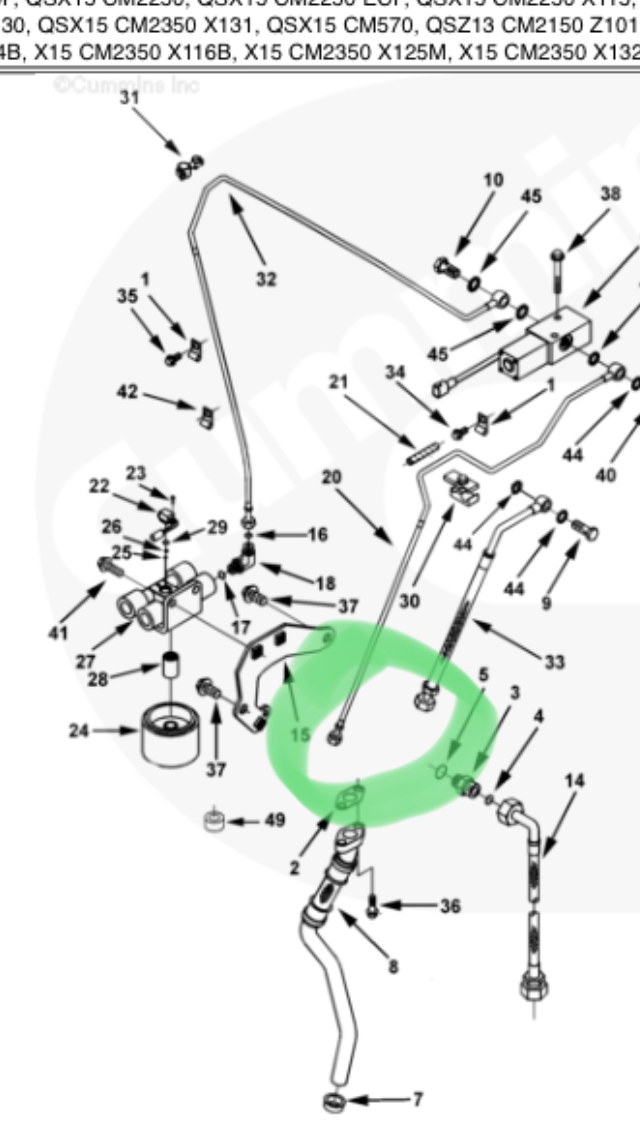

Then the next question, how do I pressure test the line between the actuator and the actuator controller?

User's Signature: I have no idea what I’m doing and probably need supervising
