Lift Pump not working

04-27-2021, (Subject: Lift Pump not working )

Post: #4

Rawze

Offline

Forum Reject (14055 Likes)

Posts: 11,231
Joined: Jun 2013

Thanks: 5985
Given 14055 thank(s) in 6169 post(s)

RE: Lift Pump not working

(04-27-2021 )Raven1466 Wrote: ESN 79428482, I'm pretty sure it's a CM2250. I appreciate your EGR tune up videos, I'm working on that now and have replaced most of the sensors already. I just got this truck so I'm new and learning as I go, thanks for all you do.

yeah, its a CM2250 according to that ser#. - Year 2010, it could have gone either way.... That is why I asked.

All you have to do is make a quickserv.com account and you can get the ecm wiring diagram. That should tell you about any relay or fuses in the wiring harness. - Quickserv is free.

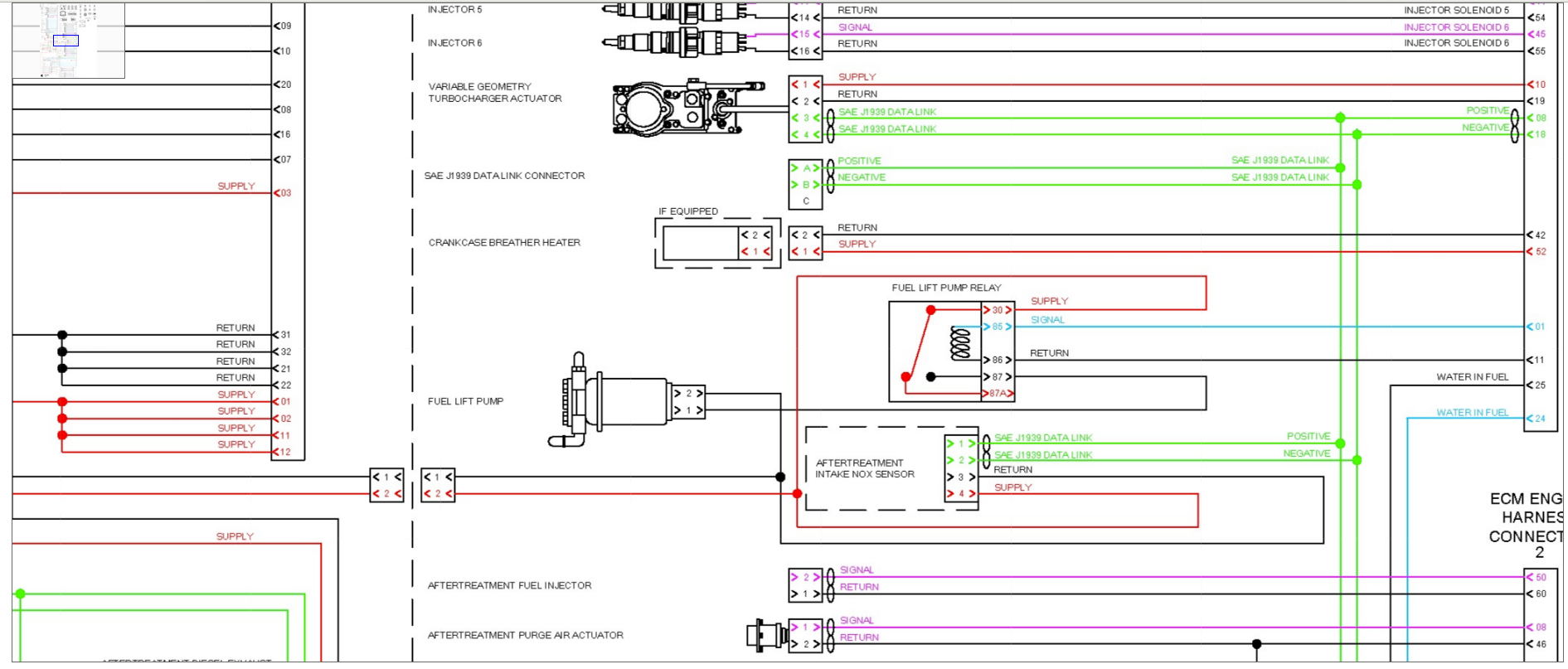

wiring diagram...
https://quickserve.cummins.com/qs3/porta...h/4022234/
./uploads/202104/post_2_1619508339_329d6187db47679f2dd99faed690071d.png

./uploads/202104/post_2_1619508339_329d6187db47679f2dd99faed690071d.png

User's Signature: ->: What I post is just my own thoughts and Opinions! --- I AM Full Of S__T!.
