871 mess

10-24-2021, (Subject: 871 mess )

Post: #5

Rawze

Online

(Online)
Forum Reject (14146 Likes)

Posts: 11,348
Joined: Jun 2013

Thanks: 6014
Given 14146 thank(s) in 6232 post(s)

RE: 871 mess

(10-23-2021 )Nostalgic Wrote: Here's an old copy I had saved...

And from today...

Not sure why exactly those specs are changed so much, but it screws with my head when I think I know it, look to make sure, and it's different. Dear Cummins, I don't need any help developing dementia lol.

I don't know where you got that top picture but that is NOT what I am showing for my ISX. Even my old manual from 2007 says 160-Ft.Lbs then 90-degrees.. this is what I set all of them to (CM570, CM870, CM871).

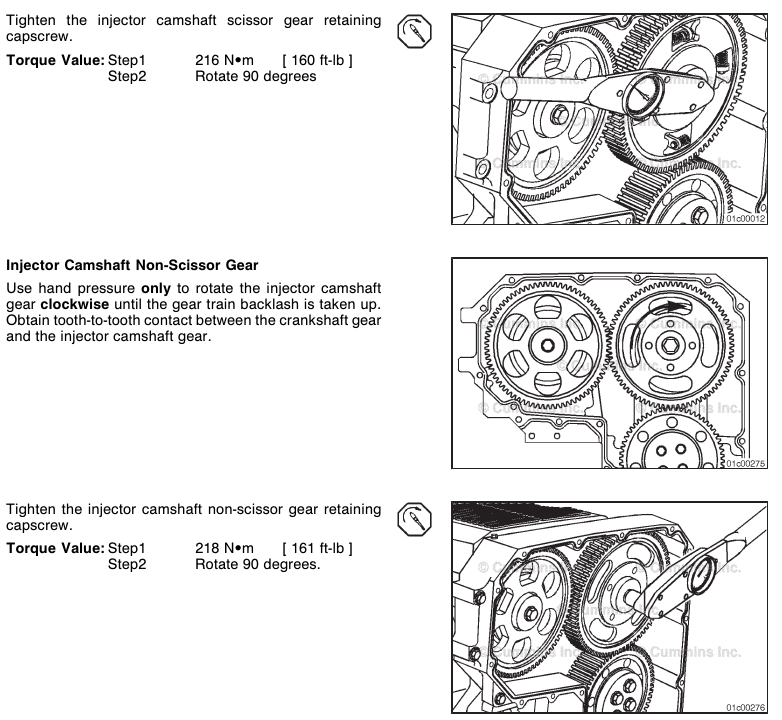

(this is from the 2007 ISX service manual) ...
./uploads/202110/post_2_1635048553_76ecd9dd84009632dc2c0765f61b97dd.png

./uploads/202110/post_2_1635048553_76ecd9dd84009632dc2c0765f61b97dd.png

User's Signature: ->: What I post is just my own thoughts and Opinions! --- I AM Full Of S__T!.
