El_mavi · 12-21-2022, **(Subject: ISM Cal File Needed )**

I’m pretty sure it’s an Ism because ecm is a CM570. But will make sure tomorrow morning. Cpl on dataplate seems for L10. Maybe PO swapped rocker housing? Are they compatible? Will try to find the esn on block as you said. Hopefully I have some new tomorrow. Appreciate the help.

(12-21-2022 )Bengy88 Wrote: Im assuming this is an m11, the esn should be on the rear corner of the block right under the head. I think its drivers side on those engines but may be passenger. You will probably need a wire brush

Aleeex · 12-30-2022, **(Subject: ISM Cal File Needed )**

L20302 Cpl doesn’t match

amermextrucker · 12-31-2022, **(Subject: ISM Cal File Needed )**

ISM & M11 basically the same engine. My old freightliner year 2000 had one in it. 330HP ESP.

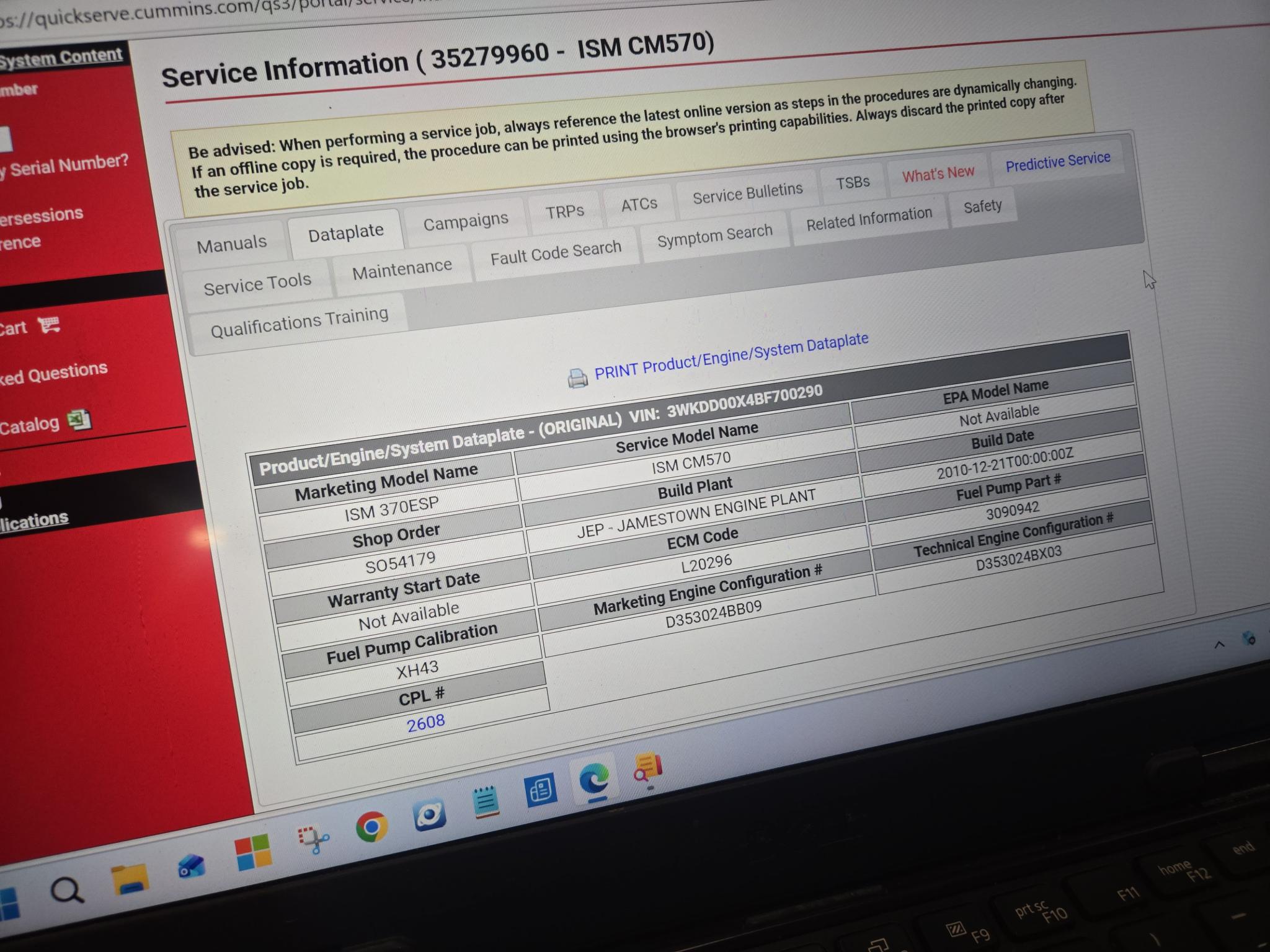

Very reliable stout engine. Here is the data plate off quickserve, maybe it helps you in some way.

Aleeex · 01-01-2023, **(Subject: ISM Cal File Needed )**

You should be in this area somewhere

It’s your cpl

Gill Oruga · 01-01-2023, **(Subject: ISM Cal File Needed )**

From what I could tell you have an M11 longblock with CM570 controls. Please understand that this calibration has three different variations for an auto trans and different power curves. I'm assuming you're linehaul with a manual transmission.
Here is what I came up with:

ECM# 3681405

Current calibration:
L20302.37 330HP 1250TQ at 1,800RPM
DO: 02103
SC: 20069
FR: 02584
CPL: 2607

Replacement calibration:
L21133.16 330HP 1250TQ at 1,800RPM
DO: 02103
SC: 20076
FR: 02657
CPL: 2607

You should be able to download that calibration off QSOL. If not, PM me and I'll send it to you.

Rawze · 01-02-2023, **(Subject: ISM Cal File Needed )**

(01-01-2023 )Aleeex Wrote: You should be in this area somewhere

It’s your cpl

The B20047 file shows that it is not meant for a ism with a CM570 ecm, but instead, it is for a Celect with an ECMB model ecm.

Aleeex · 01-03-2023, **(Subject: ISM Cal File Needed )**

(01-02-2023 )Rawze Wrote:
(01-01-2023 )Aleeex Wrote: You should be in this area somewhere

It’s your cpl

The B20047 file shows that it is not meant for a ism with a CM570 ecm, but instead, it is for a Celect with an ECMB model ecm.

So there are engines that share Cpl numbers?

Rawze · 01-03-2023, **(Subject: ISM Cal File Needed )**

(01-03-2023 )Aleeex Wrote: ...
So there are engines that share Cpl numbers?

yeah.. some engines might have some of the same hardware .. but do have a different ecm and wiring harness.
