Metal Baloon (Balloon) sound
09-28-2018, (Subject: Metal Baloon (Balloon) sound )
Post: #1
Metal Baloon (Balloon) sound
I talked the other day about this and since work I had done is under warranty and this sound came up after work was done, I plan to have it looked at but I don't know exactly what to tell them to look at.

Sounds like air escaping a metal balloon when I accelerate and turbo kicks in. I recently had two bolts replace on my manifold and I guess part of the process of that required removing part of the turbo, draining the radiator etc...


I'm still learning about all this stuff so please don't get angry or anything.


Attached File(s)Image(s)
./uploads/201809/post_3833_1538161257_2e9bb794e521d2bc62e233939d3ecee1.jpg
replyreply
 Thanks given by: fargonaz
09-28-2018, (Subject: Metal Baloon (Balloon) sound )
Post: #2
RE: Metal Baloon sound
What you described is exactly the noise that is made when the turbo mounting gasket is leaking. Someone either misinstalled it or did not torque the bolts properly. There are Two Nuts and two bolts ( 4 total) usually that hold a turbo on. More than likely you need to get your torque wrench and socket out and torque them down properly. If that does not fix it you will have to pull the turbo off and put a new gasket in it. Login to Cummins quick-serve and register your engine serial number then look up the proper torque spec for your turbo mount.
replyreply
 Thanks given by: Shively
09-28-2018, (Subject: Metal Baloon (Balloon) sound )
Post: #3
RE: Metal Baloon sound
older forum references for this ...
http://rawze.com/forums/showthread.php?t...8#pid15618
and...
http://rawze.com/forums/showthread.php?t...7#pid22387


User's Signature: ->: What I post is just my own thoughts and Opinions! --- I AM Full Of S__T!.
replyreply
09-29-2018, (Subject: Metal Baloon (Balloon) sound )
Post: #4
RE: Metal Baloon sound
If you'll post your engine serial number, I'll upload the specs that you are looking for if needed.
replyreply
09-29-2018, (Subject: Metal Baloon (Balloon) sound )
Post: #5
RE: Metal Baloon sound
(09-28-2018 )Chamberpains Wrote:  ...
Someone either misinstalled it or did not torque the bolts properly...


The torque on the turbo mounting bolts to the manifold should be set to 75 ft-lbs for the ISX CM870, CM871, and a minimum of 60 ft-lbs for the CM2250 and the CM2350's. There are some older manuals out there with only a value of 45 ft-lbs because of out of date turbo's that are no longer used. This is too low of a proper torque for any of the VG/HX turbochargers that are used with them. Even the quickserv procedure is confusing to what the proper torque is. Here is an example of this confusion inside this CM870 manual. On one page it says this...

./uploads/201809/post_2_1538203556_2037aa094abaec1830ddd6fbde7cfe94.png

Clearly someone would see this, because it is the first occurrence when doing a search to what the torque should be. - A typical mechanic will search for this spec and then set out to under-torque the turbo, either setting it to 45 ft-lbs, or to 60-ft-lbs(better but still under-torqued). using the page I just showed. -- THIS IS INCORRECT!!!


Simply scrolling down through the procedure further, it actually shows the correct torque of 75 ft-lbs as seen on this page inside this same procedure ...

./uploads/201809/post_2_1538203755_39065b07cb4ec9850750de7abf46df2b.png

-- This is because the second reference to proper torque IS FOR the VG TURBOCHARGER and for the HX60 TURBO that have standard size manifold mounting studs!. -- THE PROPER TORQUE FOR THE TURBO MOUNTING BOLTS IS 75 FT-LBS for a CM870 or CM871!. Anything LESS and you get exactly the problem you are having almost every time.

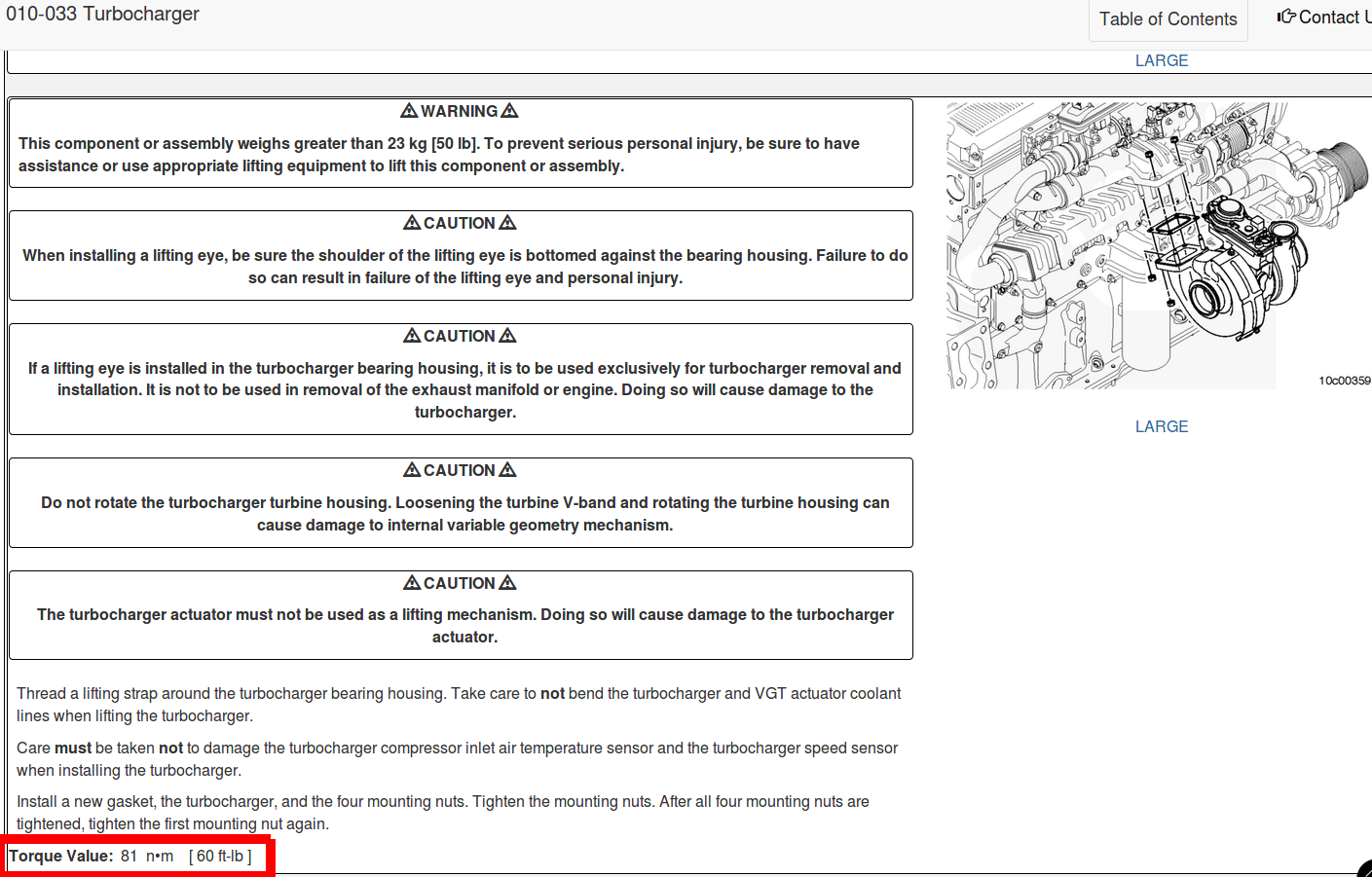

-- for the newer CM2250's and CM2350's, it shows this...

./uploads/201809/post_2_1538205364_cae66de0069eb4d597d290a12f3cc59e.png

Actually I disagree with this a bit. I still torque them to 70-75 ft-lbs when someone is here and i am working on their truck with them. This is because 60~ish is barely enough to keep the problem from happening. Even in this procedure, it says to go back and re-torque the 60 ft-lbs a second time. Likely because they had this same issues?


-- ASK your mechanic what he torqued the turbo mounting bolts to and see what he replies with. If he does not know off the top of his head, he HAS NOT LOOKED IT UP ENOUGH TIMES and is likely NOT doing a proper job!. and if he says 45 ft-lbs --- CORRECT HIM WITH THIS INFORMATION AND TELL HIM TO STOP SCREWING PEOPLES GASKETS UP!.


- Grab a torque wrench and check each of the 4 mounting nuts to see if they are 75 ft-lbs (CM870/CM871), or at least 60 ft-lbs if it is a CM2250 or CM2350. Most likely you will find one or more of them under-torqued. Once that problem sets in though, you have to pull it apart, clean the mounting surfaces again, and replace the gasket to get it to stop.





Tags:
turbo, turbo torque, turbo mounting torque, screech, metal balloon, proper torque on turbo


User's Signature: ->: What I post is just my own thoughts and Opinions! --- I AM Full Of S__T!.
replyreply
 Thanks given by: redbeard , trucklogger2 , ZeroNthedark
