I've got a CEL for egr out of calibration on a cm2350. Anybody have experience with this one? Can I disassemble and clean or is it toast?
To be short

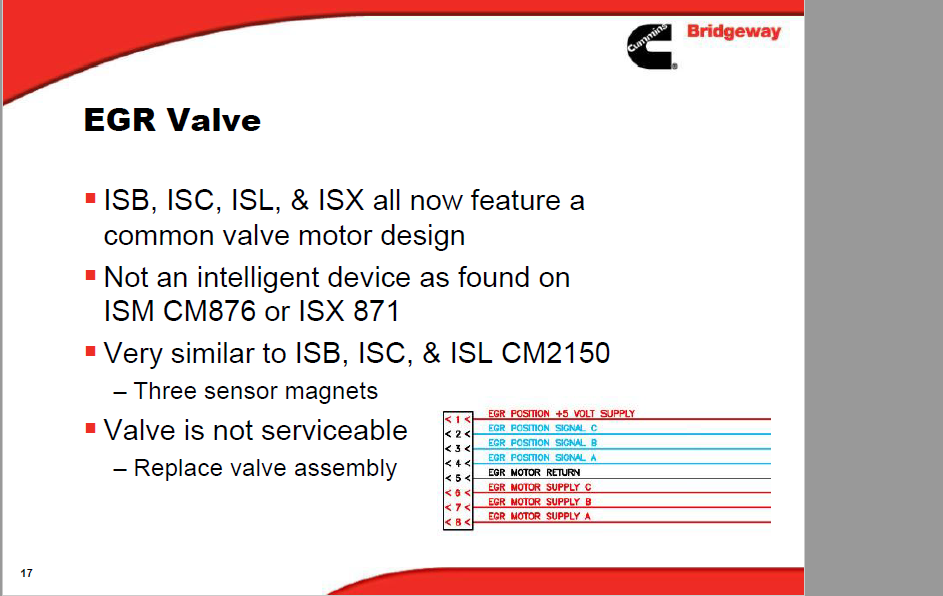

[attachment=3580]
Some guys clean them
I took it off and it didn't look all that bad. Cleaned it up but it still threw a 1896 and 2272 FC. Took a closer look into the top side of the valve and it looks like the board got a little hot where the terminals are soldered in. Peterbilt said $1049, I said no thanks and got one from a buddy who had a delete done.
I've been switching back and forth between a cal. that shuts it off thinking it wouldn't matter. Lesson learned, gonna have to figure out how to isolate the valve until I'm ready to do away with it.
It hurts! Doesn’t it?
Looking at the top two pictures . What a crapptasstique ingenuity !
It says all over : Eat your shitttt and comeback for more !!!

Ready or not , just do it .
