Counter-bore tools and parts...

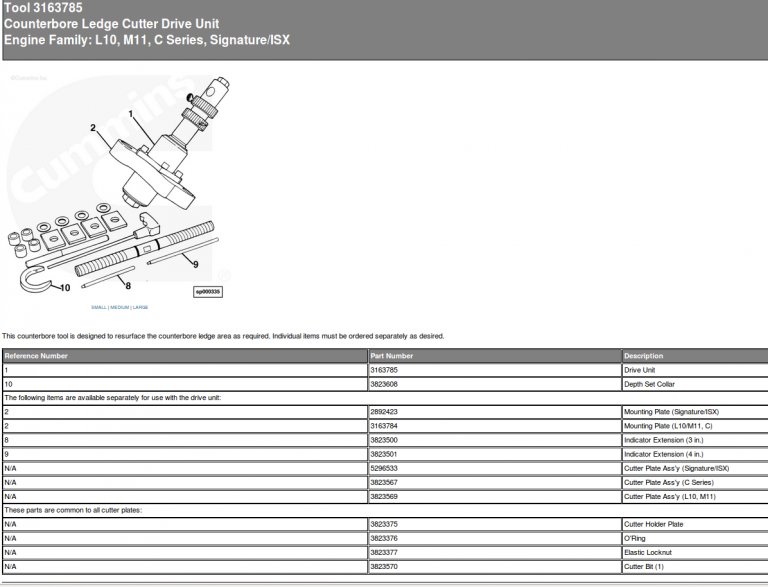

Came across this today. Just putting it here for anyone that may be looking for such things...

./uploads/201701/post_2_1483944675_02c5c5942e19c7162af43684b10853f9.png

./uploads/201701/post_2_1483944675_02c5c5942e19c7162af43684b10853f9.png

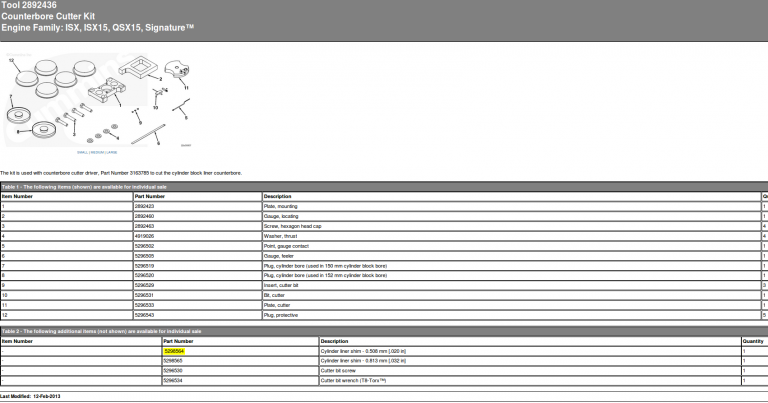

and..

./uploads/201701/post_2_1483944690_4d1af0164039069975dc1522c3e215a4.png

Parts:

5298564 - Hardened bronze shim 0.020"
5298564 - Hardened bronze shim 0.032"

===

Procedure for the ISX 870/871/2250/2350...
https://quickserve.cummins.com/qs3/pubsy...ounterbore

(update 06-03-2018): When following this procedure, just keep in mind that most people on this forum including myself agree that a liner height of 0.014" is much better than factory height of 0.010" for longevity reasons.

==========

Here is the same tool from Apex. This is the one I own, and it works very well too..
https://www.apexinds.com/tools/M50145.html
